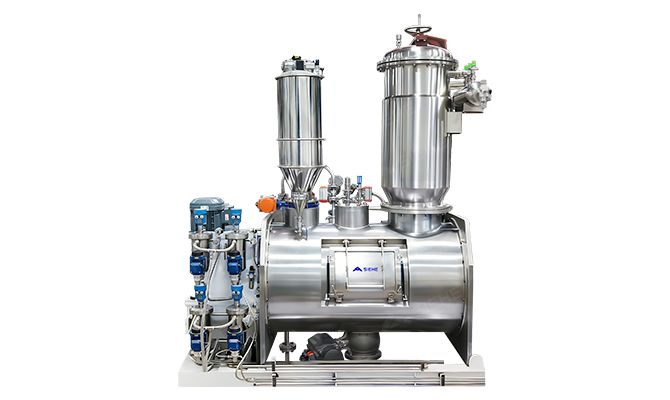

Horizontal Vacuum Dryer

SIEHE’s new-generation horizontal plough vacuum dryer integrates mixing, drying, reaction, coating and granulation. It has obtained CE certification and meets ATEX explosion-proof requirements, widely used in battery materials, food, chemical, building materials and other industries. The V-shaped plough head features a parabolic curved surface and two-wing streamlined design. It is precision-cast and formed in one pass by a 5-axis machining center, featured of high strength and precision. The small clearance between plough and barrel wall reduces the impact of powder accumulation on heat transfer efficiency. Side-mounted high-speed choppers quickly disperse and deagglomerate clumping materials, prevent wet powder from agglomerating, and improve mixing and drying performance. The whole machine achieves a vacuum degree up to 5 mbar. The high-vacuum environment lowers the solvent boiling point, enabling high-efficiency low-temperature drying and greatly improving drying efficiency and effect. The main shaft and choppers adopt double-end integrated mechanical seals with open end-face and hygienic design, equipped with a 53 flushing system, which operates stably at a maximum temperature of 300 ℃ (main shaft with thermal expansion compensation) and under extreme vacuum from -0.1 MPa to 1 MPa. The machine is equipped with heating/cooling jackets. Heating/cooling media flow along a specific path for uniform and efficient heat transfer, and precise temperature control is realized with a mold temperature controller. Dust removal, condensation recovery and gas-solid separation units are installed at the front of the vacuum system to minimize raw material loss.
