Full-Open Twin-Shaft Paddle Mixer

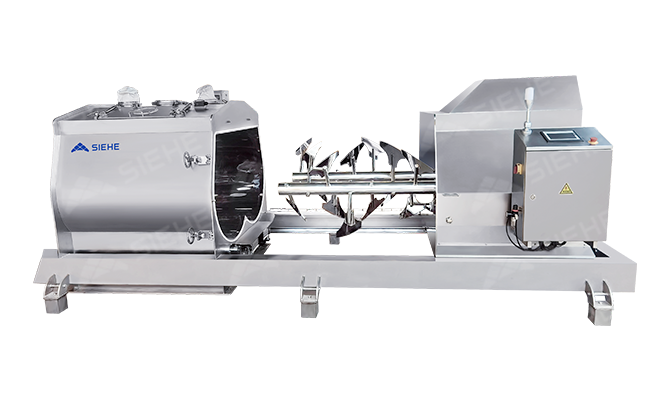

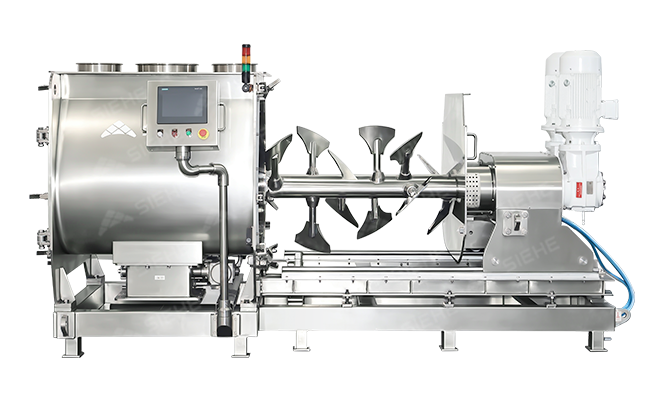

The Full-open Twin-shaft Paddle Mixer is a new generation of hygienic blending equipment developed and designed by SIEHE in strict accordance with the requirements of the food and pharmaceutical industries. It is suitable for efficient mixing of powder-powder, granule-granule, granule-powder, and with small amounts of liquid. This machine overcomes the structural limitations of traditional mixers, such as "locked-in barrel and difficulty in thoroughly removing material residues," by using a gear reducer directly connected to the mixer rotor, resulting in higher operational reliability and a longer service life. A sliding rail is located at the bottom of one side of the drum, employing a sliding pull-out design. The two mixing shafts can be moved out of the mixing barrel along with the gearbox, completely exposing the interior of the mixing chamber for thorough cleaning. The other side features a flip-open door design, allowing both doors to be opened for fully open, dead-angle-free cleaning. During operation, the two mixing shafts rotate in opposite directions, and the paddles propel the material throughout the barrel, creating a momentary weightlessness. The material achieves rapid and uniform mixing under high-speed convection and shearing, significantly improving mixing efficiency. A pneumatic flap valve is installed at the bottom, with a high degree of arc-shaped fit, rapid discharge, and no dead angles.
